MTH: PA - Modifications page:

(Click here for MTH: PA - Photos & Video Page)

Model Info:

• MTH Product Pages:
  • American Freedom #1776: (A unit - w/PS2) (70-2086-1):  http://www.mthtrains.com/70-2086-1 - ** Never produced production cancelled **

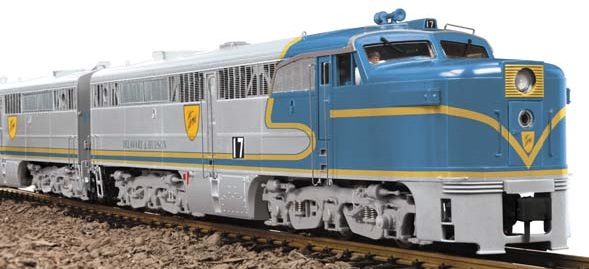

  • Delaware & Hudson #16, 18: (AA unit pair - w/PS2) (70-2034-1):  http://www.mthtrains.com/70-2034-1
  • Delaware & Hudson (No engine number): (B unit - Non powered) (70-2034-3):  http://www.mthtrains.com/70-2034-3
  • New Haven #0762, 0767: (AA unit pair - w/PS2) (70-2035-1):  http://www.mthtrains.com/70-2035-1
  • New Haven #0791: (B unit - Non powered) (70-2035-3):  http://www.mthtrains.com/70-2035-3
  • Pennsylvania #5750, 5751: (AA unit pair - w/PS2) (70-2036-1):  http://www.mthtrains.com/70-2036-1
  • Pennsylvania #5752B: (B unit - Non powered) (70-2036-3):  http://www.mthtrains.com/70-2036-3
  • Pennsylvania #5753: (A unit - w/PS2) (70-2082-1):  http://www.mthtrains.com/70-2082-1 - ** Never produced production cancelled **
  • Pennsylvania #5754: (A unit - Non powered) (70-2082-4):  http://www.mthtrains.com/70-2082-4 - ** Never produced production cancelled **
  • Pennsylvania #5756: (A unit - powered w/PS3) (70-2148-1):   http://www.mthtrains.com/70-2148-1  (2019/2020 model) (Announced 6/20/2019, Delivery=11/15/21)
  • Pennsylvania #5759: (A unit - non-powered) (70-2148-4):   http://www.mthtrains.com/70-2148-4  (2019/2020 model) (Announced 6/20/2019, Delivery=11/15/21)
  • Pennsylvania #5758: (A unit - powered w/PS3) (70-2149-1):   http://www.mthtrains.com/70-2149-1  (2019/2020 model) (Announced 6/20/2019, Delivery=11/15/21)
  • Rio Grande #6003, 6011: (AA unit pair - w/PS2) (70-2037-1):  http://www.mthtrains.com/70-2037-1
  • Rio Grande #6002: (B unit - Non powered) (70-2037-3):  http://www.mthtrains.com/70-2037-3
  • Rio Grande #6013: (A unit - w/PS2) (70-2083-1):  http://www.mthtrains.com/70-2083-1 - ** Never produced production cancelled **
  • Rio Grande #6001: (A unit - Non powered) (70-2083-4):  http://www.mthtrains.com/70-2083-4 - ** Never produced production cancelled **
  • Santa Fe #60, 62: (AA unit pair - w/PS2) (70-2033-1):  http://www.mthtrains.com/70-2033-1
  • Santa Fe #62a: (B unit) (70-2033-3):  http://www.mthtrains.com/70-2033-3
  • Santa Fe #72: (A unit - w/PS2) (70-2081-1):  http://www.mthtrains.com/70-2081-1 - ** Never produced production cancelled **
  • Santa Fe #56: (A unit - Non-powered) (70-2081-4):  http://www.mthtrains.com/70-2081-4 - ** Never produced production cancelled **
  • Santa Fe #51L: (A unit - powered w/PS3) (70-2141-1):   http://www.mthtrains.com/70-2141-1  (2019/2020 model) (Announced 6/20/2019, Delivery=11/15/21)
  • Santa Fe #51B: (A unit - non-powered) (70-2141-4):   http://www.mthtrains.com/70-2141-4  (2019/2020 model) (Announced 6/20/2019, Delivery=11/15/21)
  • Santa Fe #52L: (A unit - powered w/PS3) (70-2142-1):   http://www.mthtrains.com/70-2142-1  (2019/2020 model) (Announced 6/20/2019, Delivery=11/15/21)
  • Santa Fe (GOLD) #53: (A unit - powered w/PS3) (70-2143-1):   http://www.mthtrains.com/70-2143-1  (2019/2020 model) (Announced 6/20/2019, Delivery=11/15/21)
  • Santa Fe (GOLD) #54: (A unit - non-powered) (70-2143-4):   http://www.mthtrains.com/70-2143-4  (2019/2020 model) (Announced 6/20/2019, Delivery=11/15/21)
  • Southern Pacific #6006, 6007: (AA unit pair - w/PS2) (70-2038-1):  http://www.mthtrains.com/70-2038-1
  • Southern Pacific #5910: (B unit - Non powered) (70-2038-3):  http://www.mthtrains.com/70-2038-3
  • Southern Pacific #6009: (A unit - w/PS2) (70-2084-1):  http://www.mthtrains.com/70-2084-1 - ** Never produced production cancelled **
  • Southern Pacific #6010: (A unit - Non powered) (70-2084-4):  http://www.mthtrains.com/70-2084-4 - ** Never produced production cancelled **
  • Southern Pacific #6009: (A unit - powered w/PS3) (70-2144-1):   http://www.mthtrains.com/70-2144-1  (2019/2020 model) (Announced 6/20/2019, Delivery=TBD)
  • Southern Pacific #6011: (A unit - non-powered) (70-2144-4):   http://www.mthtrains.com/70-2144-4  (2019/2020 model) (Announced 6/20/2019, Delivery=TBD)
  • Southern Pacific #6010: (A unit - powered w/PS3) (70-2145-1):   http://www.mthtrains.com/70-2145-1  (2019/2020 model) (Announced 6/20/2019, Delivery=TBD)
  • Union Pacific #604, 607: (AA unit pair - w/PS2) (70-2039-1):  http://www.mthtrains.com/70-2039-1
  • Union Pacific #606B: (B unit - Non powered) (70-2039-3):  http://www.mthtrains.com/70-2039-3
  • Union Pacific #605: (A unit - w/PS2) (70-2085-1):  http://www.mthtrains.com/70-2085-1  - ** Never produced production cancelled **
  • Union Pacific #602: (A unit - Non powered) (70-2085-4):  http://www.mthtrains.com/70-2085-4 - ** Never produced production cancelled **
  • Union Pacific #605: (A unit - powered w/PS3) (70-2146-1):   http://www.mthtrains.com/70-2146-1  (2019/2020 model) (Announced 6/20/2019, Delivery=11/15/21)
  • Union Pacific #603: (A unit - non-powered) (70-2146-4):   http://www.mthtrains.com/70-2146-4  (2019/2020 model) (Announced 6/20/2019, Delivery=11/15/21)
  • Union Pacific #606: (A unit - powered w/PS3) (70-2147-1):   http://www.mthtrains.com/70-2147-1  (2019/2020 model) (Announced 6/20/2019, Delivery=11/15/21)
  • New York Central #4202: (A unit - w/PS2) (70-2087-1):  http://www.mthtrains.com/70-2087-1 - ** Never produced production cancelled **
  • New York Central #4203: (A unit - Non-powered) (70-2087-4):  http://www.mthtrains.com/70-2087-4 - ** Never produced production cancelled **
  • New York Central #4300: (B unit - Non-powered) (70-2087-3):  http://www.mthtrains.com/70-2087-3 - ** Never produced production cancelled **
• Owners Manual: PA-OwnersManual.pdf (For all PA Units)
• PS2 Sound File: - Not avail
• Parts Diagram:  **Not available**
• Unit measurements:  48 11/16" x 5 5/8" x 3 7/8"
• Photos/Videos of model: PA - Photos/Videos

MTH One Gauge Catalogs:

• 2001(see page 90) - 2003 - 2004 - 2005 - 2006 - 2007 - 2010 - 2011 - 2013 - 2015 - 2017 - 2018(BigBoy) - 2019/2020

Model Overview:

The PA was first introduced in the 2007 One Gauge catalog.

• Detail is excellent and true to prototype with key detail parts being made of metal/brass
• Axles and gears are all metal for long life
  • Eliminates failures seen in other mfg engines: Gear & Motor bearing failures

________________________________________________________________________________

MTH PA - Repair/Modifications:

Modifications/Topics list:

• MTH  -  PA: (Repair page)

  • Control issues when engines with slave board are running - Adding inductors to engines with a slave board

________________________________________________________________________________

05/30/2010

Control issues when engines with slave boards are running - Adding inductors to engines with a slave board

I have found that the engines running slave boards (Diesels with second powered A units, Triplex tender, etc) can affect signaling levels in track signal tests.  In normal situations this should not affect anything, however it could lead to some issues in some cases.

This issue can be eliminated by adding an inductor in the + and - wires from the tender track power pickups leading to the slave board on each Triplex.  From tests, 100uh or greater will work.

(Note:  Most users will not encounter such issues as they will be running on much smaller ovals, may have lights/SSBRDs deployed, and will be running with fewer engines [usually one at a time].  This enhancement is to inform that if you are running multiple engines with multiple slave boards that this is something you can do long term to reduce the chance of a random control issue with an engine not responding.  This is not a must-do critical enhancement.)

__________________________________________________________________________________
